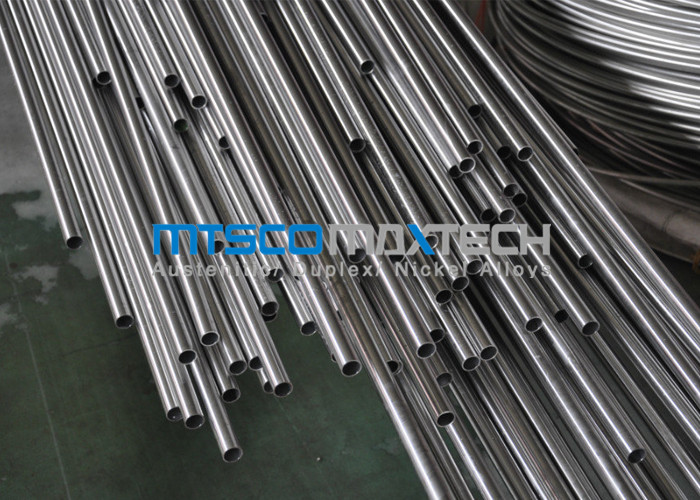

TP309S Stainless Steel Instrument Tubing , Seamless Bright Annealed Tube

Grade

TP304 / 304L , 316 / 316L , 310S , 317L , 321 , 347H etc ( 300 series are the main products, if you have special material requirements, please tell us)

Standard

ASTM A 213 , ASTM A 269 , EN10216-5

Size

OD : 4.76 - 25.4mm

WT : 0.71 - 2.11mm

Length : According to clients requirement

4.76 * 0.71mm / 4.76 * 0.89mm / 4.76 * 1.24mm

6 * 1mm / 6 * 1.5mm

6.35 * 0.71mm / 6.35 * 0.89mm / 6.35 * 1.24mm / 6.35 * 1.65mm

7.94 * 0.71mm / 7.94 * 0.89mm / 7.94 * 1.24mm / 7.94 * 1.65mm

9.53 * 0.71mm / 9.53 * 0.89mm / 9.53 * 1.24mm / 9.43 * 1.65mm

10 * 1mm / 10 * 1.5mm

12 * 1mm / 12 * 1.5mm / 12 * 2mm

12.7 * 0.71mm / 12.7 * 0.89mm / 12.7 * 1.24mm / 12.7 * 1.65mm / 12.7 * 2.11mm

14 * 1mm / 14 * 1.5mm / 14 * 2mm

15.88 * 0.89mm / 15.88 * 1.24mm / 15.88 * 1.65mm / 15.88 * 2.11mm

16 * 1mm / 16 * 1.5mm / 16 * 2mm

19.05 * 0.89mm / 19.05 * 1.24mm / 19.05 * 1.65mm / 19.05 * 2.11mm

25.4 * 0.89mm / 25.4 * 1.24mm / 25.4 * 1.65mm / 25.4 * 2.11mm

Application :

a) General service industries ( petroleum , food , chemical , paper , fertilizer , fabric , aviation and nuclear )

b) Fluid , gas and oil transport

c) Pressure and heat transmission

d) Construction and ornament

e) Boiler and heat exchangers

f) Decorative usage ( road lamp facilities , bridge handrail , expressway railing , bus stop , airport and gymnasium )
